Arista | SKU:
DCS-7280CR3-32D4-F-REF

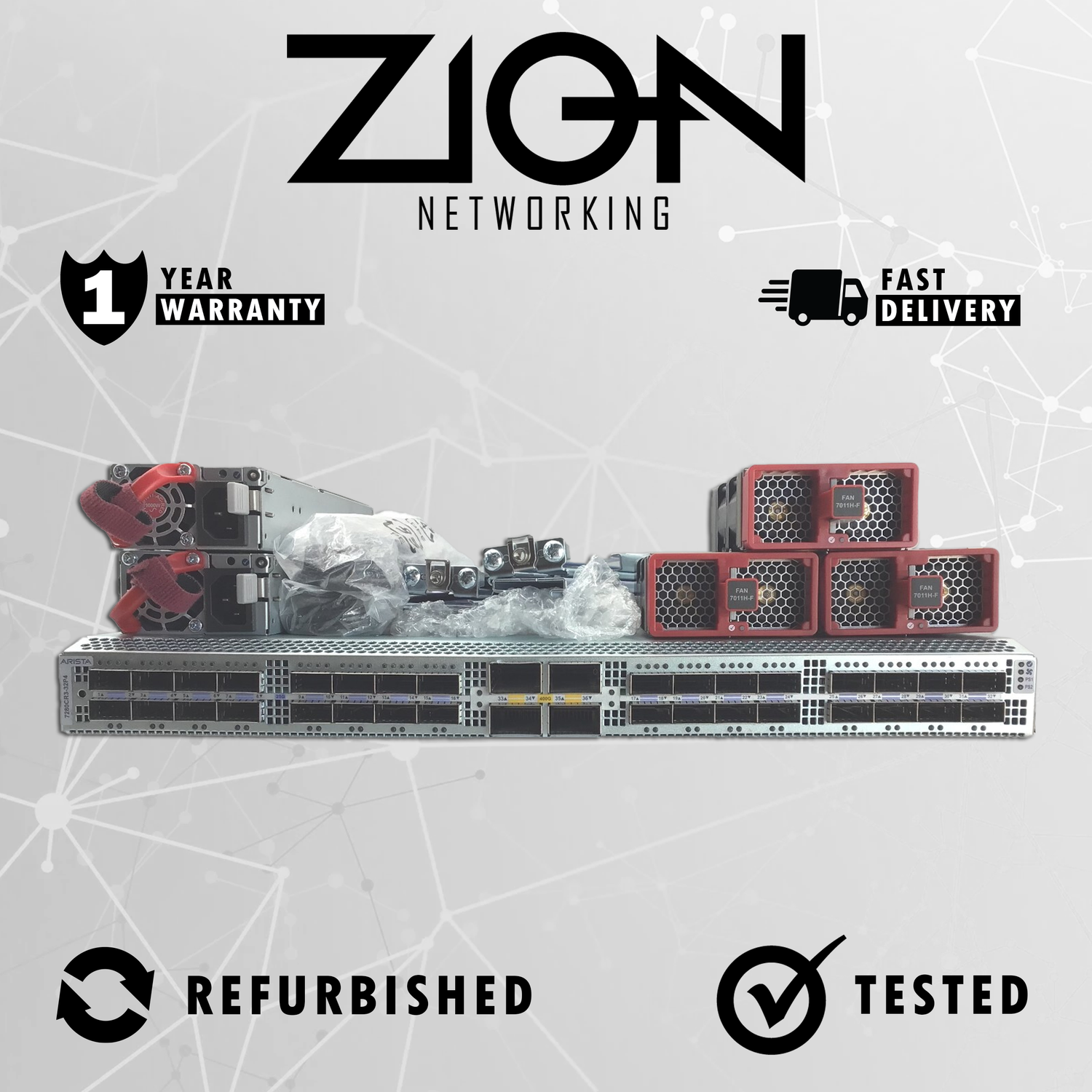

Arista DCS-7280CR3-32D4-F 7280R3, 32x100GbE QSFP and 4x400GbE QSFP-DD switch router, front to rear air, 2 x AC
$49,999.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Arista DCS-7280CR3-32D4-F 7280R3, 32x100GbE QSFP and 4x400GbE QSFP-DD switch router, front to rear air, 2 x AC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Arista DCS-7280CR3-32D4-F 7280R3, 32x100GbE QSFP and 4x400GbE QSFP-...
$49,999.00
Unit price
/
Unavailable
Overview
- Model: Arista DCS-7280CR3-32D4-F
- Series: Arista 7280R3
- Form Factor: 1 RU (Rack Unit)
- Airflow: Front-to-back airflow (denoted by the "F" in the model number).
- Condition: Refurbished
- 32 x 100GbE QSFP28 ports:
- Each QSFP28 port can support 100GbE, 40GbE, or breakout configurations such as 4x25GbE or 4x10GbE for flexibility.
- 4 x 400GbE QSFP-DD ports:
- Each port can support 400GbE or be broken out into smaller port speeds, such as 4 x 100GbE, providing future-proofing for growing bandwidth demands.
- Switching Capacity: 12.8 Tbps (Terabits per second).
- Forwarding Rate: 5.7 Bpps (Billion packets per second).
- Latency: Ultra-low latency, suitable for environments requiring fast and consistent network performance.
- Layer 2:
- Supports VLANs, including 802.1Q VLAN tagging.
- Link Aggregation (LACP) with up to 64 ports per group.
- Spanning Tree Protocol (STP, RSTP, MSTP).
- Jumbo Frames up to 9216 bytes.
- Layer 3:
- Supports advanced IPv4 and IPv6 routing, including OSPF, BGP, IS-IS, and RIP.
- VRF (Virtual Routing and Forwarding) for Layer 3 virtualization.
- Equal-Cost Multi-Path (ECMP) routing with up to 128-way paths for load balancing.
- VXLAN: Hardware-based VXLAN support for scalable Layer 2 network virtualization over Layer 3.
- Quality of Service (QoS):
- Supports up to 8 egress queues per port.
- Provides flexible traffic prioritization, policing, and shaping.
- Security:
- Access Control Lists (ACLs) for filtering traffic at Layers 2-4.
- Control Plane Policing (CoPP) to protect the control plane.
- MACsec (802.1AE) encryption for secure data transmission on selected interfaces.
- Telemetry and Monitoring:
- Arista Latency Analyzer (LANZ) for real-time network performance analysis.
- Flow and Streaming Telemetry support for detailed traffic monitoring and analysis.
- Operating System: Runs Arista’s Extensible Operating System (EOS), which provides advanced programmability, real-time network monitoring, and automation capabilities.
- eAPI (Extensible API): Supports automation through REST APIs.
- CloudVision: Integrates with Arista's CloudVision for network-wide automation, visibility, and telemetry.
- Zero Touch Provisioning (ZTP) for automated deployment.
- Power Supplies: Dual, hot-swappable, redundant power supplies (AC or DC).
- Typical Power Consumption: Approximately 500W (varies based on configuration and traffic).
- Cooling: Hot-swappable fan trays with front-to-back airflow.
- Dimensions: 1.75 inches (4.45 cm) height x 19 inches (48.26 cm) width x 18 inches (45.72 cm) depth.
- Weight: Approximately 26.2 lbs (11.9 kg).
- Data Center Spine/Leaf Architectures: Ideal for deployment in high-performance, scalable data center topologies.
- Enterprise Core and Aggregation: Suitable for large-scale enterprises needing high-density, low-latency switching with advanced routing capabilities.
- Cloud and Virtualization Environments: VXLAN and other overlay technologies make it an excellent fit for cloud data centers.
- High-density 100GbE and 400GbE ports: Supports flexible configurations for cloud and enterprise data centers.
- Advanced Layer 2 and Layer 3 routing: Provides a full suite of features for high-performance routing and switching.
- Low latency: Designed for latency-sensitive applications such as high-frequency trading (HFT) and real-time data analytics.
