Cisco | SKU:
A99-12X100GE-ref

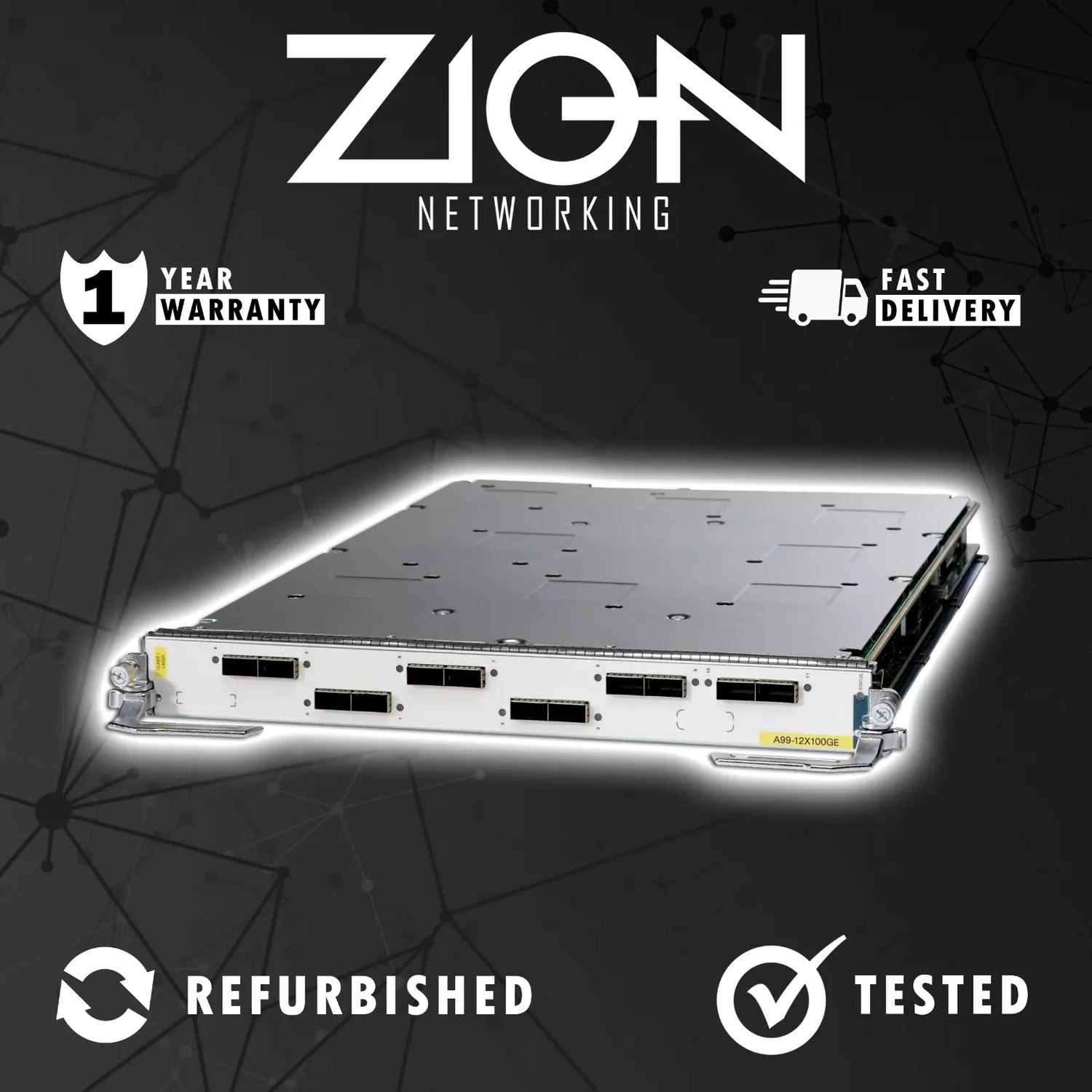

CISCO A99-12X100GE ASR 9900 12-PORT 100GE LINE CARD
$19,999.00
Unit price
/
Unavailable
Shipping calculated at checkout.
CISCO A99-12X100GE ASR 9900 12-PORT 100GE LINE CARD is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
CISCO A99-12X100GE ASR 9900 12-PORT 100GE LINE CARD
$19,999.00
Unit price
/
Unavailable
CISCO A99-12X100GE ASR 9900 12-PORT 100GE LINE CARD
- Product Name: Cisco ASR 9000 12-port 100GE Line Card
- Part Number: A99-12X100GE
- Type: 12-port 100 Gigabit Ethernet line card
- Series: ASR 9000 Series Aggregation Services Routers
- 2. Physical Specifications
- Form Factor: Line card for ASR 9000 series
- Slot Compatibility: Designed to fit into line card slots of Cisco ASR 9000 series chassis.
- Ports: 12 x 100 Gigabit Ethernet (100GE) ports, supporting QSFP28 transceivers.
- 3. Performance
- Interface Type: 100GE, supports QSFP28 optics modules.
- Forwarding Performance: Capable of line-rate forwarding on all 12 ports simultaneously.
- Total Bandwidth: 1.2 Tbps (Terabits per second) per line card.
- Scalability: Supports a large number of routes, ACLs, and MAC entries suitable for service provider networks.
- Forwarding: Distributed packet forwarding, reducing load on the control plane.
- 4. Supported Features
- Ethernet Features:
- Jumbo frames
- IEEE 802.1Q VLAN tagging
- Ethernet flow control
- Link aggregation
- Advanced Features:
- MPLS (Multiprotocol Label Switching)
- L2VPN and L3VPN
- Carrier Ethernet features (including Hierarchical QoS)
- Segment routing
- IPv4 and IPv6 unicast and multicast routing
- Virtualization features like EVPN (Ethernet VPN)
- 5. Optics and Cabling
- Transceiver Modules: Supports a wide range of QSFP28 transceivers, including:
- 100GE SR4 (Short Reach)
- 100GE LR4 (Long Reach)
- 100GE CWDM4
- 100GE PSM4
- 100GE ER4
- 100GE AOC (Active Optical Cable)
- Backward Compatibility: Can be used with QSFP28 transceivers that support lower speeds like 40GE, with appropriate breakout cables.
- 6. Power and Environmental Requirements
- Power Consumption: Typically around 650-850W depending on optics and traffic.
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -40°F to 158°F (-40°C to 70°C)
- Humidity: 5% to 95% non-condensing
- 7. Reliability and Redundancy
- Redundancy: Supported in a redundant power and cooling configuration as part of the ASR 9000 platform.
- Hot-Swappable: The line card supports hot-swapping without disrupting the operation of the rest of the system.
- 8. Software and Operating System
- Operating System: Cisco IOS XR, known for modularity, high availability, and support for advanced networking features.
- Software Features:
- MPLS Traffic Engineering
- Ethernet VPN (EVPN)
- QoS (Quality of Service)
- Layer 2 and Layer 3 forwarding
- Advanced routing protocols like OSPF, BGP, IS-IS, etc.
- 9. Compliance
- Safety and Emissions Standards:
- Compliant with major international safety and emission standards.
- Certifications such as UL, CSA, CE, and FCC.
- 10. Use Cases
- Service Provider Networks: High-density 100GE aggregation and edge routing.
- Data Centers: Backbone and core aggregation.
- Carrier Ethernet Applications: For high-performance routing and switching in carrier-grade environments.
- Condition : Seller refurbished
