Cisco ASR-9001 Router 4x 10G Port & Dual AC,A9K-750W-AC w/rmk L...

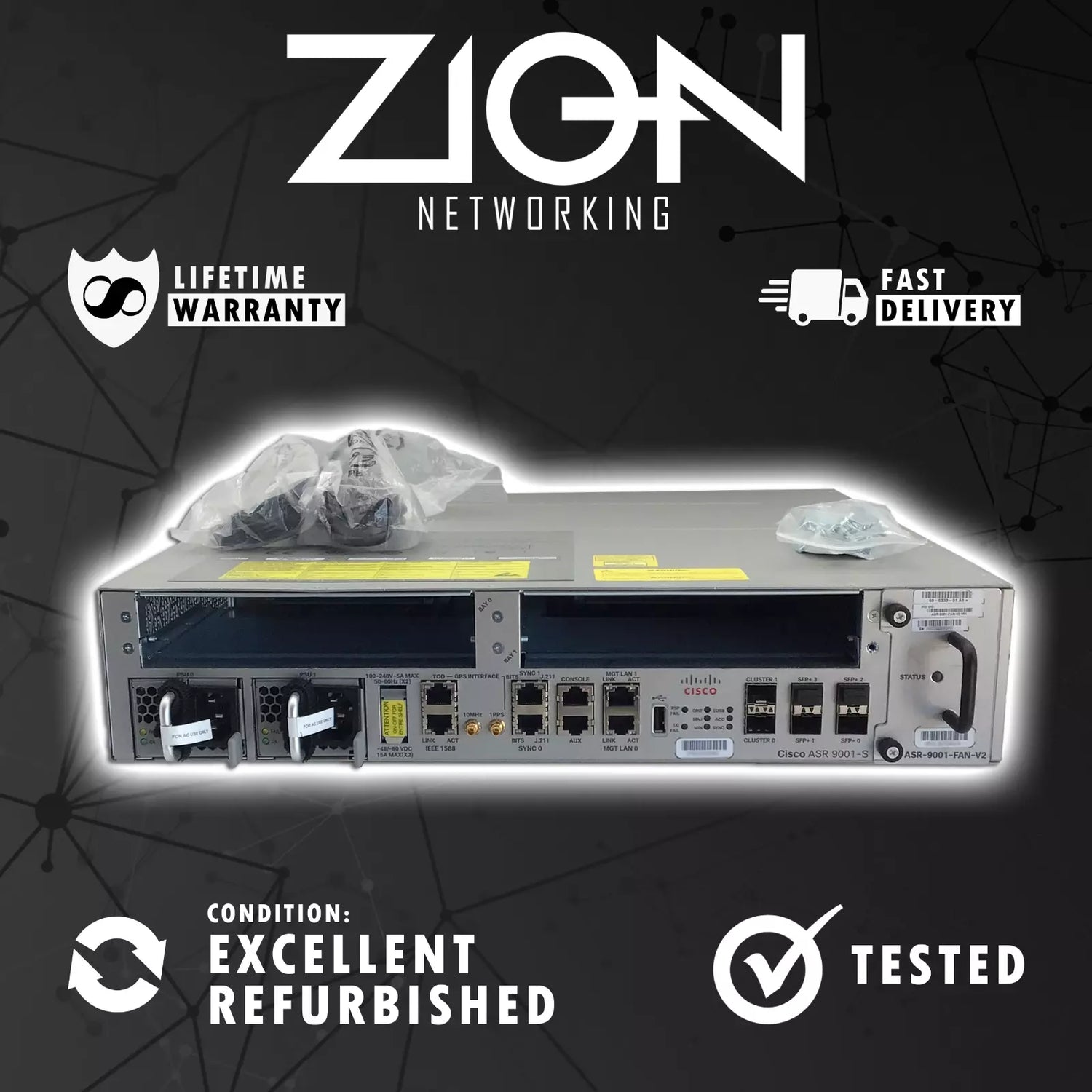

Cisco ASR-9001 ASR 9001 4-Port 10 Gigabit SFP+ Router DUAL AC POWER
ASR-9001 Overview
The Cisco ASR 9001 is a compact, high-capacity, provider-edge router that delivers 120 Gbps of nonblocking, full-duplex fabric capacity in a 2-rack-unit (2RU) form factor. Cisco ASR 9001 has an integrated route switch processor (RSP) and two modular bays, which support 1 Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet modular port adapters. The base chassis, ASR-9001 has four integrated 10 Gigabit Ethernet enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.
Quick spec of ASR-9001
- Model : ASR 9001
- Slots : Fixed 4x10GE 2 Modular Port Adapters
- Rack Size : 2 RU
- Max Capacity : 240 Gbps
- Size (H x W x D) : 3.5 in. x 17.5 in. x 18.5 in.
- Power : AC or DC 425 W (typical), 525 W (max)
- Fan : 1 fan tray
- Airflow : Side to Side
- RSP / RP : Integrated
- Fabric Architecture : Integrated
- Software : IOS XR
ASR-9001 Specification
- Type :Cisco ASR 9001 Chassis
- Integrated interfaces :4 x 10 GE SFP+
- Modular port adapters :20 x 1 GE, 2 x 10 GE, 4 x 10 GE, 1 x 40 GE
- Redundancy :Power supply redundancy
-
Power supply part number :
- A9K-750W-AC
- A9K-750W-DC
-
Physical specifications :
- Height: 3.472 inches (88.2 mm)
- Width: 17.42 inches (442 mm)
- Depth: 18.5 inches (470 mm)
- Weight of chassis: 30.2032 lbs (13.7 kg)
- Weight of chassis with two MPAs: 36.37623 lbs (16.5 kg)
-
Power inputs :
- Worldwide ranging AC (90-265V; 50-60 Hz)
- Worldwide ranging DC (-40V to -72V)
- Power consumption :425 watts typical, 525 watts maximum
-
Environmental conditions :
- Operating temperature: 32 to 104°F (0 to 40°C)
- Storage temperature: -40 to 167°F (-40 to 75°C)
- Relative humidity: 10 to 90%, noncondensing
- Regulatory compliance
- Operating temperature (nominal) :41 to 104ºF (5 to 40ºC)
- Operating temperature (short-term) :23 to 131ºF (-5 to 55ºC)
- Operating humidity (nominal) (relative humidity) :10 to 85%
- Operating humidity (short-term) :5 to 90% Note: Not to exceed 0.024 kg water or dry air
- Storage temperature :-40 to 158ºF (-40 to 70ºC)
- Storage (relative humidity) :5 to 95% Note: Not to exceed 0.024 kg water or dry air
- Operating altitude :-1800m
- Air flow :Side to side
-
Network Equipment Building Standards (NEBS) :
- Cisco ASR 9001 is designed to meet:
- SR-3580: NEBS Criteria Levels (Level 3)
- GR-1089-CORE: NEBS EMC and Safety
- GR-63-CORE: NEBS Physical Protection
- VZ.TPR.9205: Verizon TEEER
-
ETSI standards :
- Cisco ASR 9001 is designed to meet (qualification in progress):
- EN300 386: Telecommunications Network Equipment (EMC)
- ETSI 300 019 Storage Class 1.1
- ETSI 300 019 Transportation Class 2.3
- ETSI 300 019 Stationary Use Class 3.1
- EN55022: Information Technology Equipment (Emissions)
- EN55024: Information Technology Equipment (Immunity)
- EN50082-1/EN-61000-6-1: Generic Immunity Standard
-
EMC standards :
- Cisco ASR 9001 is designed to meet:
- FCC Class A
- ICES 003 Class A
- AS/NZS 3548 Class A
- CISPR 22 (EN55022) Class A
- VCCI Class A
- BSMI Class A
- IEC/EN 61000-3-2: Power Line Harmonics
- IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
- EN 50121-4: Railway EMC
-
Immunity :
- Cisco ASR 9001 is designed to meet:
- IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
- IEC/EN-61000-4-3: Radiated Immunity (10V/m)
- IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
- IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
- IEC/EN-61000-4-5: Signal Ports (1kV)
- IEC/EN-61000-4-5: Surge DC Port (1kV)
- IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
- IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
- IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
- EN 50121-4: Railway EMC
-
Safety :
- Cisco ASR 9001 is designed to meet:
- UL/CSA/IEC/EN 60950-1
- IEC/EN 60825 Laser Safety
- ACA TS001
- AS/NZS 60950
- FDA: Code of Federal Regulations Laser Safety
