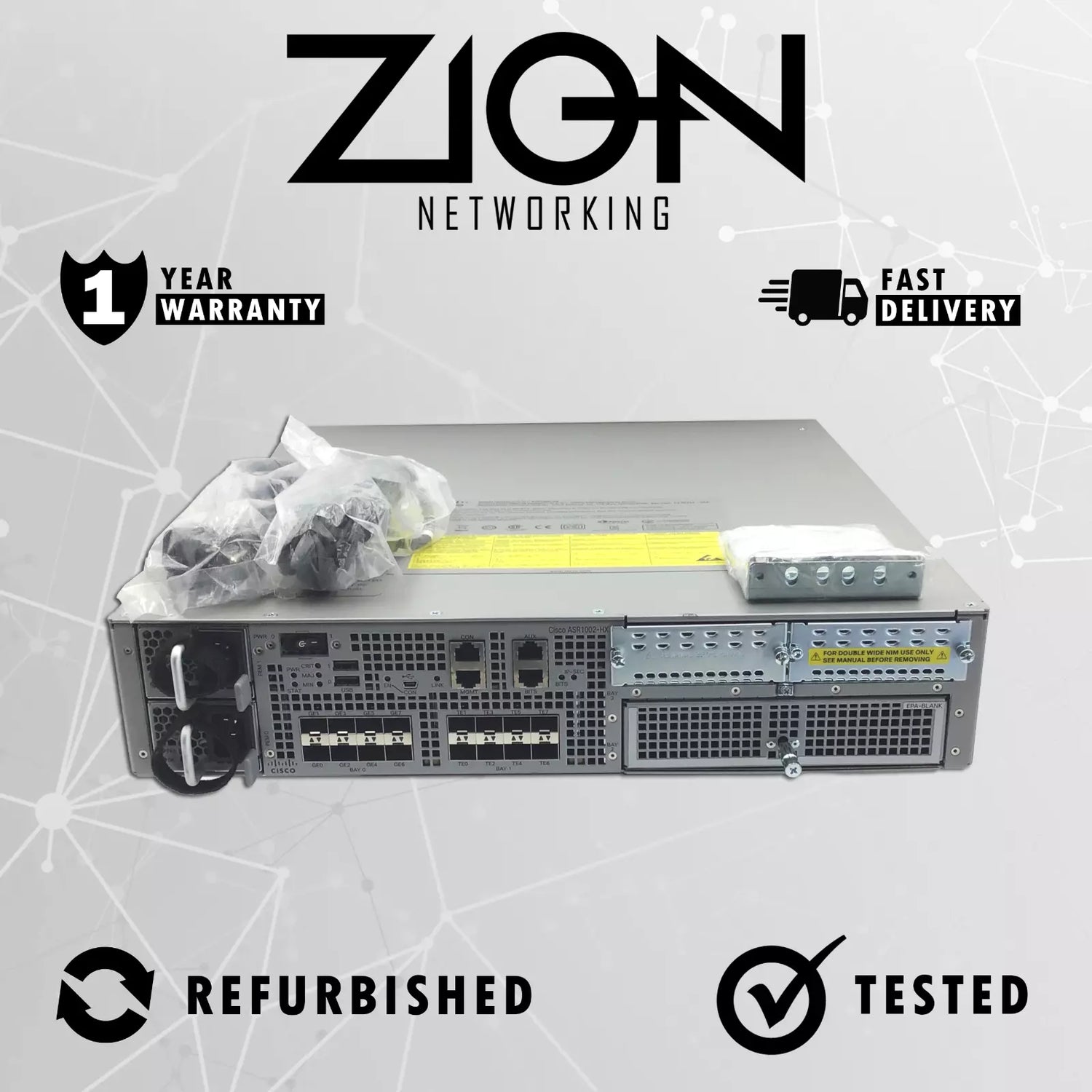

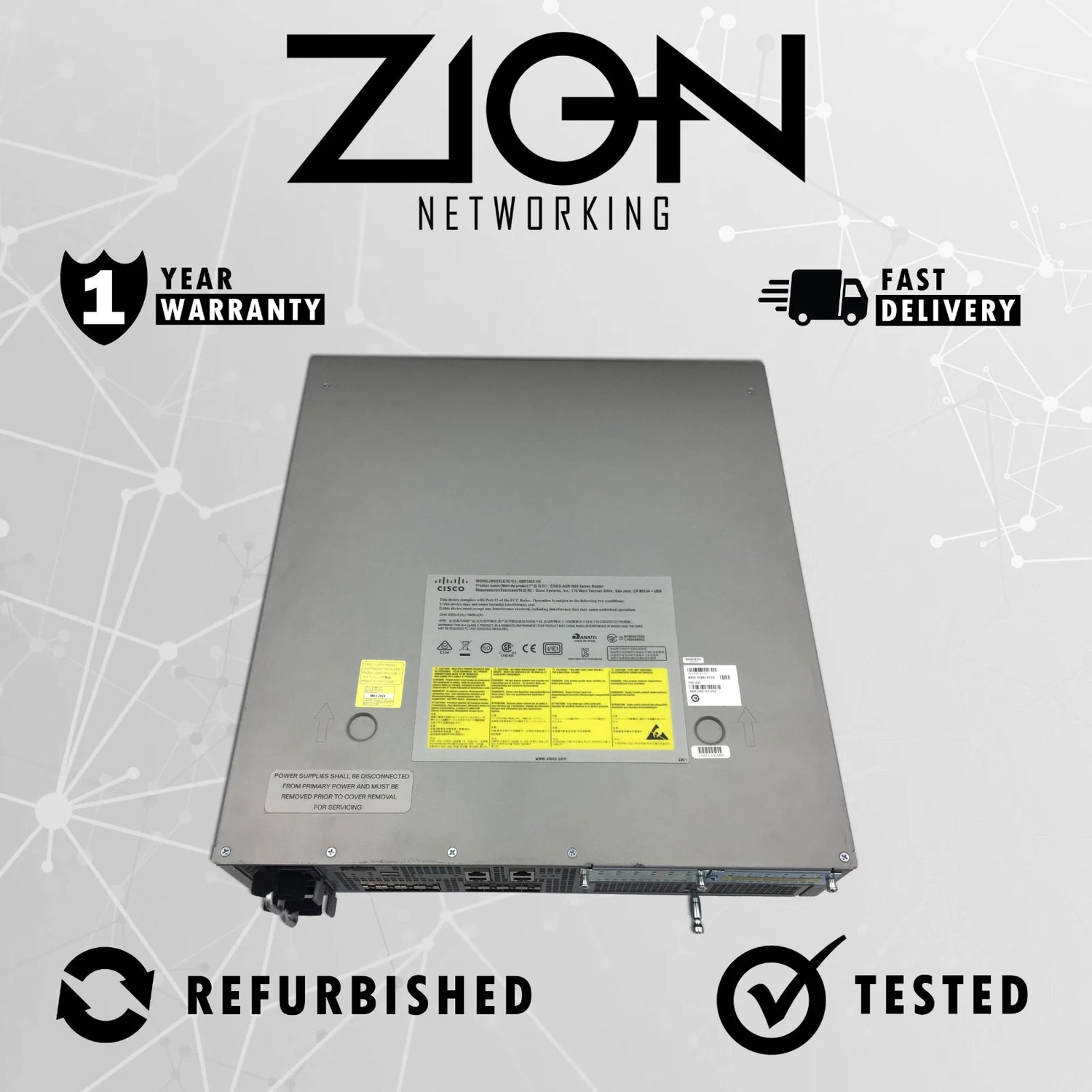

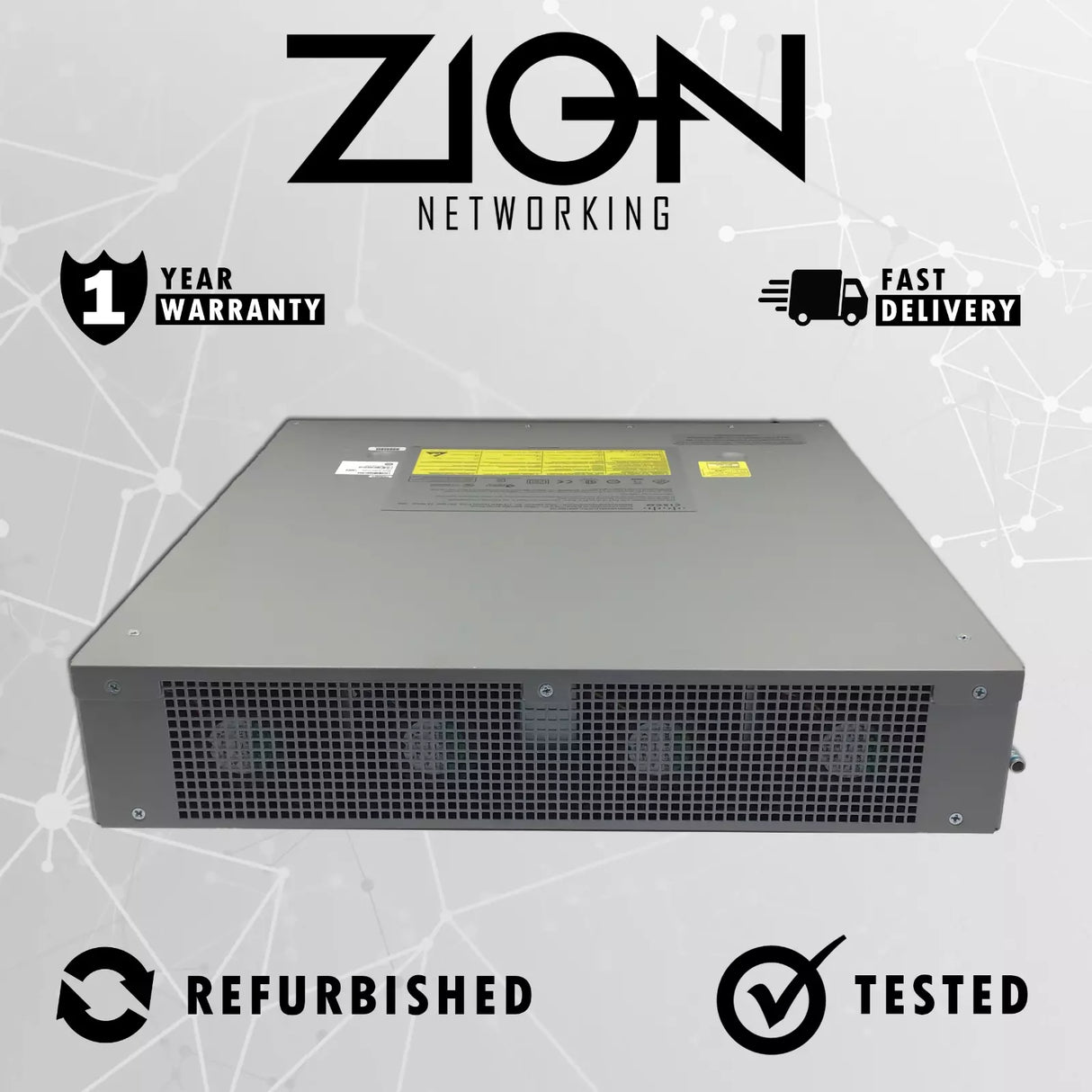

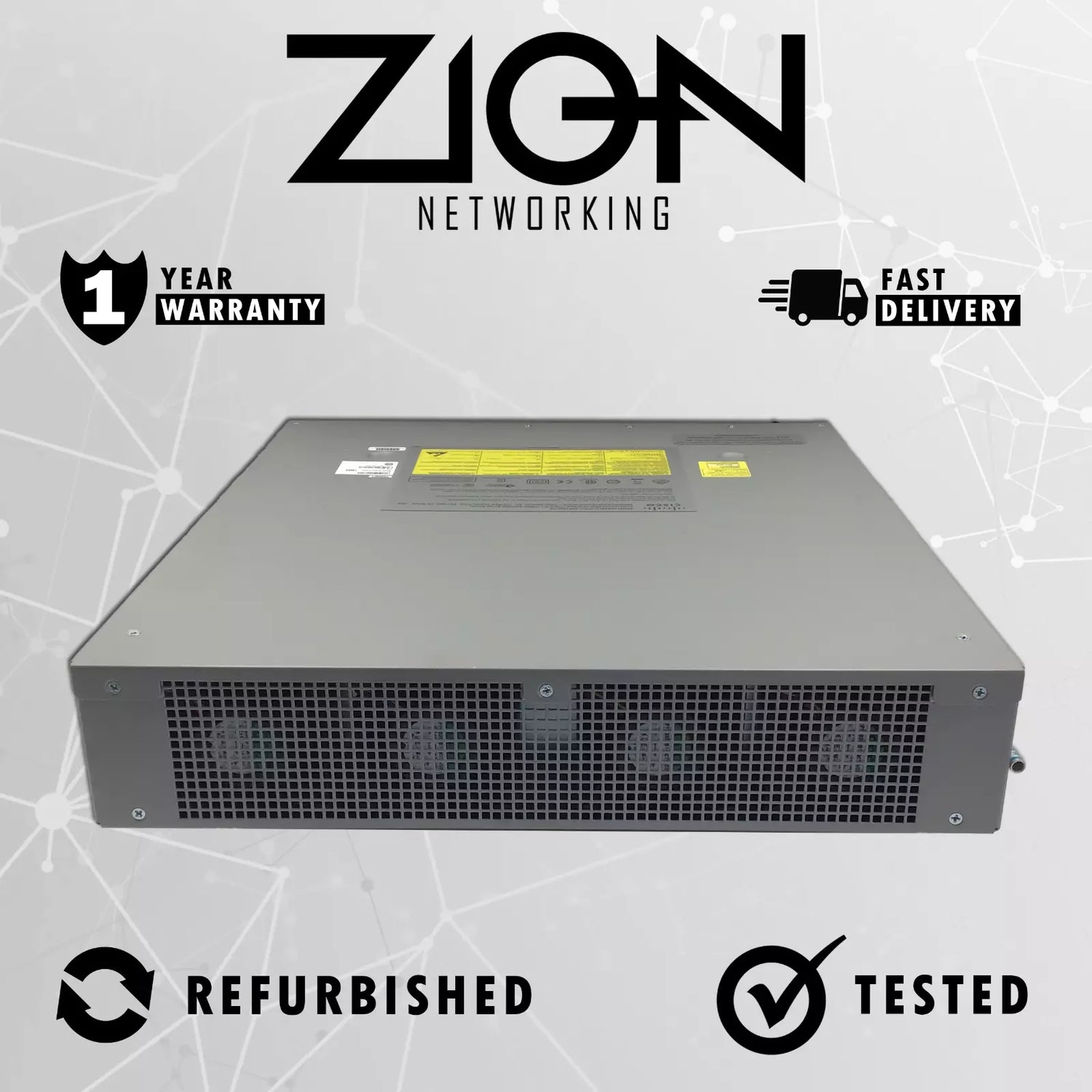

Quick spec of ASR1002-HX

• Part Number : ASR1002-HX=
• Condition: Refurbished
• Default memory : 16-GB DRAM shared across route processor, ESP, and MIP
• Number of SIPs or Ethernet line cards supported : Integrated in chassis
• Ethernet port adapters : 1 EPA slot
• Cisco ASR 1000 Series ESP : Integrated in chassis
• Route processor : Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor
• Redundancy : Software: Yes
• Built-in Gigabit Ethernet ports : Yes: 8 Gigabit Ethernet SFP ports
• Built-in 10 Gigabit Ethernet port : Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note:Built-in 10-GB ports cannot be reduced to 1-GB speed.
• Network interface module : Yes
• Dimension : Height: 3.5 in. (88.9 mm) Width: 17.3 in. (439.4 mm) Depth: 19.25 in. (489.0 mm)

ASR1002-HX Specification

• Physical specifications :
  • Height: 3.5 in. (88.9 mm) Width: 17.3 in. (439.4 mm) Depth: 19.25 in. (489.0 mm) Weight:
  •   34 lb (15.45 kg) (with dual AC power supplies)
  •   34 lb (15.45 kg) (with dual DC power supplies)
• Default memory :16-GB DRAM shared across route processor, ESP, and MIP
• Number of SIPs or Ethernet line cards supported :Integrated in chassis
• Shared port adapters :N/A
• Ethernet port adapters :1 EPA slot
• Cisco ASR 1000 Series ESP :Integrated in chassis
• Route processor :Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor
• Redundancy :Software: Yes
• Built-in Gigabit Ethernet ports :Yes: 8 Gigabit Ethernet SFP ports
• Built-in 10 Gigabit Ethernet port :Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note:Built-in 10-GB ports cannot be reduced to 1-GB speed.
• Network interface module :Yes
• ESP support :Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) equivalent
• ESP bandwidth :100 Gbps
• ESP memory :Share the same control memory on route processor
• SIPs and Ethernet line cards :Integrated in chassis: not upgradable
• Embedded hardware-based encryption :Yes: Up to 25-Gbps crypto support throughput
• Minimum Cisco IOS XE Software release :Cisco IOS XE Software Release 16.2.1S
• Rack-mounting :Yes: 19-inch
• Wall-mounting :No
• External USB flash memory :1-GB USB flash-memory support
• Redundant power supply :Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported.
• Power input :Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; -48V nominal)
• Power consumption :
  •   Maximum (DC): 500W
  •   Maximum (AC): 500W
• Airflow :Front-to-back
• Operating temperature (nominal) :32 to 104°F (0 to 40°C)
• Operating temperature (short-term) :32 to 122°F (0 to 50°C)
• Operating humidity (nominal) (relative humidity) :10 to 85%
• Operating humidity (short-term) :5 to 90%
• Storage temperature :-40 to 150°F (-40 to 70°C)
• Storage humidity (relative humidity) :5 to 95%
• Operating altitude :-500 to 10,000 feet (152 to 3048 meters)
• Network Equipment Building Standards (NEBS) :GR-1089 and GR-63
• EMC standards :
  • Emissions
  •   FCC 47CFR15 Class A
  •   AS/NZS CISPR 22
  •   CISPR 22 Class A
  •   EN55022 Class A
  •   ICES-003 Class A
  •   VCCI Class A
  •   CNS-13438 Class A
  •   EN61000-3-2
  •   EN61000-3-3 Immunity
  •   IEC/EN61000-4-2 Electrostatic Discharge Immunity
  •   IEC/EN61000-4-3 Radiated Immunity
  •   IEC/EN61000-4-4 EFT-B Immunity
  •   IEC/EN61000-4-5 Surge
  •   IEC/EN61000-4-6 Immunity to Conducted Disturbances
  •   IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity
  •   IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations ETSI/EN
  •   EN55022/CISPR 22 Information Technology Equipment (Emissions)
  •   EN55024/CISPR 24 Information Technology Equipment (Immunity)
  •   EN300 386 Telecommunications Network Equipment
  •   EN50082-1/EN61000-6-1 Generic Immunity Standard
• Safety Standard :UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1

Cisco ASR1002-HX Datasheet
