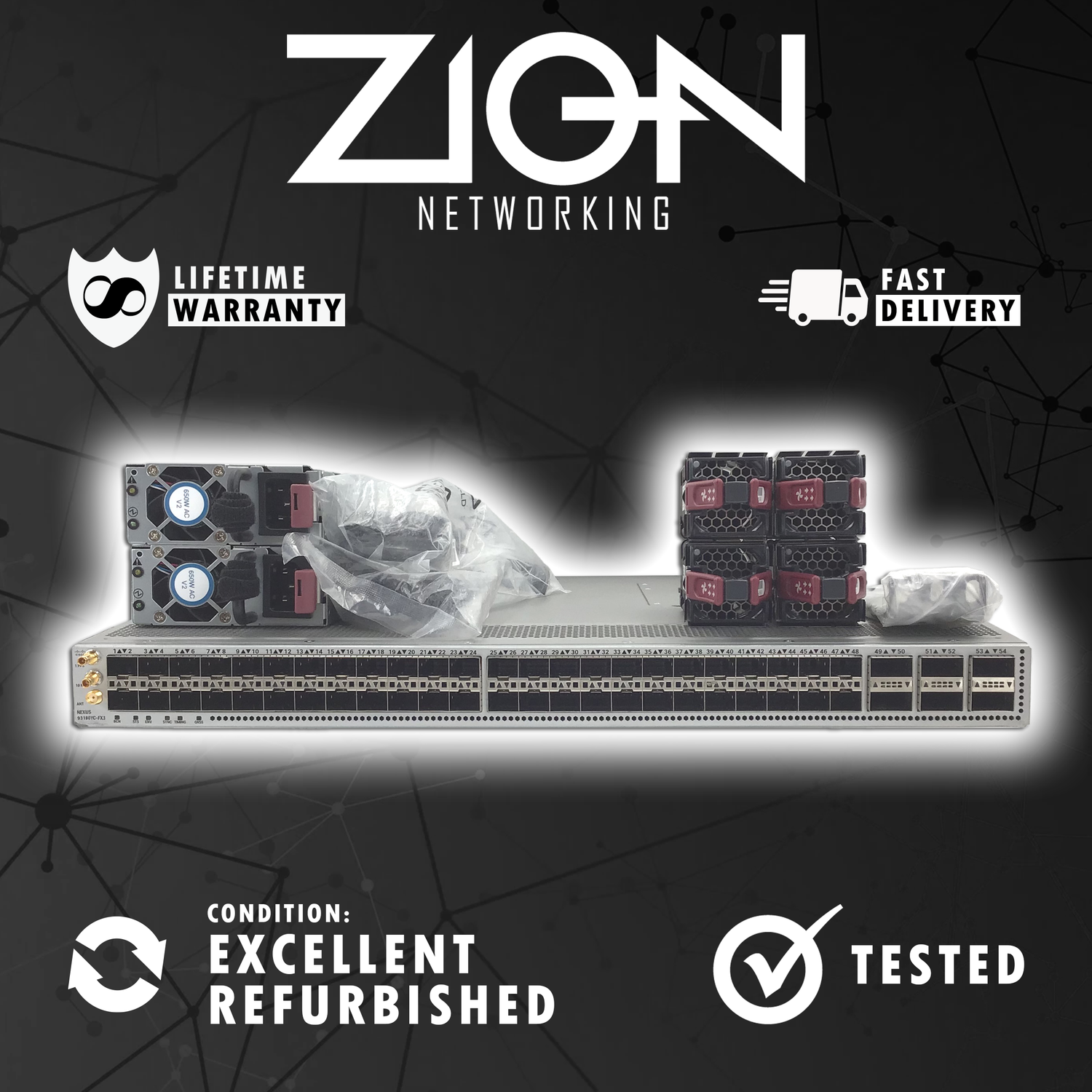

Cisco Nexus N9K-C93180YC-FX3 Ethernet Switch - Manageable 3 Layer Supported

Overview

The N9K-C93180YC-FX3 is a high-performance, fixed-configuration data center switch from Cisco's Nexus 9000 Series. Designed to meet the demanding requirements of modern data centers, this switch offers exceptional performance, scalability, and flexibility for a wide range of applications and workloads. With advanced features and capabilities, the N9K-C93180YC-FX3 empowers organizations to optimize their network infrastructure and deliver reliable and high-speed connectivity to support critical business operations.

Specifications

• Switching Capacity: 3.6 Tbps (Terabits per second)
• Forwarding Rate: 1.4 Bpps (Billion packets per second)
• Form Factor: 1 RU (Rack Unit)
• Interfaces:
• 48 ports of 1/10/25-Gbps (SFP+/SFP28)
• 6 ports of 40/100-Gbps (QSFP+/QSFP28)
• Port Types:
• 1/10/25-Gbps ports: Configurable to support 1-Gbps, 10-Gbps, or 25-Gbps on the same port.
• 40/100-Gbps ports: Configurable to support either 40-Gbps or 100-Gbps.
• Performance and Scalability:
• Latency: Ultra-low latency, approximately 1 microsecond.
• MAC Address Table Size: 128,000 entries.
• VLAN IDs: Up to 4,096 VLANs.
• Jumbo Frames: Support for jumbo frames up to 9216 bytes.
• Multicast: Up to 32,000 multicast routes.
• Supported Features:
• Layer 2 and Layer 3: Supports both L2 and L3 forwarding.
• VXLAN: Supports Virtual Extensible LAN (VXLAN) with MP-BGP EVPN.
• Routing Protocols: OSPF, BGP, IS-IS, EIGRP, VRF, HSRP, and more.
• MPLS: Supports Multiprotocol Label Switching (MPLS).
• Fabric Technology: Can be used in Cisco Application Centric Infrastructure (ACI) environments as well as standalone NX-OS mode.
• FEX Support: Supports up to 48 FEXs (Fabric Extenders).
• Buffering:
• Buffer Size: 40 MB (shared across all ports)
• Power and Environmental:
• Power Supplies: Dual redundant, hot-swappable AC or DC power supplies.
• Power Consumption: Approximately 350W at typical usage.
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 5% to 95% non-condensing.
• Storage and Memory:
• DRAM: 16 GB
• Flash Memory: 64 GB
• Software Features:
• Cisco NX-OS Software: This switch runs Cisco NX-OS, providing a comprehensive feature set for data center operations.
• Advanced Security: Includes features such as ACLs (Access Control Lists), IEEE 802.1X, DHCP snooping, port security, and CoPP (Control Plane Policing).
• Compliance and Standards:
• IEEE Compliance: IEEE 802.3 (Ethernet), IEEE 802.1Q (VLAN), IEEE 802.1p (CoS prioritization), IEEE 802.3ad (Link Aggregation), IEEE 802.1s (MSTP), and IEEE 802.1w (RSTP).
• RoHS: RoHS-compliant.
• Use Cases:
• High-density 10G/25G aggregation.
• Data center spine and leaf architecture.
• Network fabric for modern cloud and multi-cloud environments.
• Part Number: N9K-C93180YC-FX3
• Condition: Refurbished
