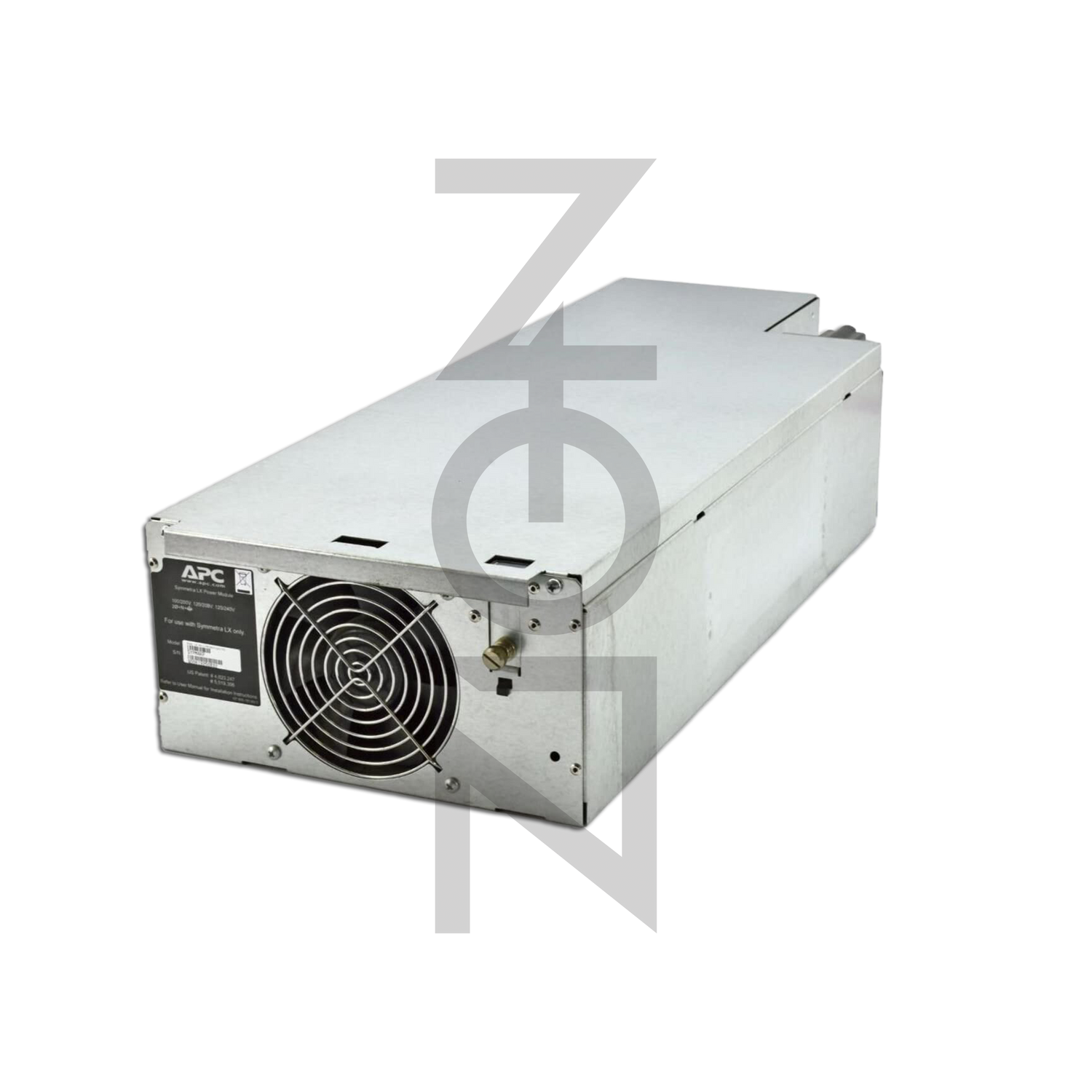

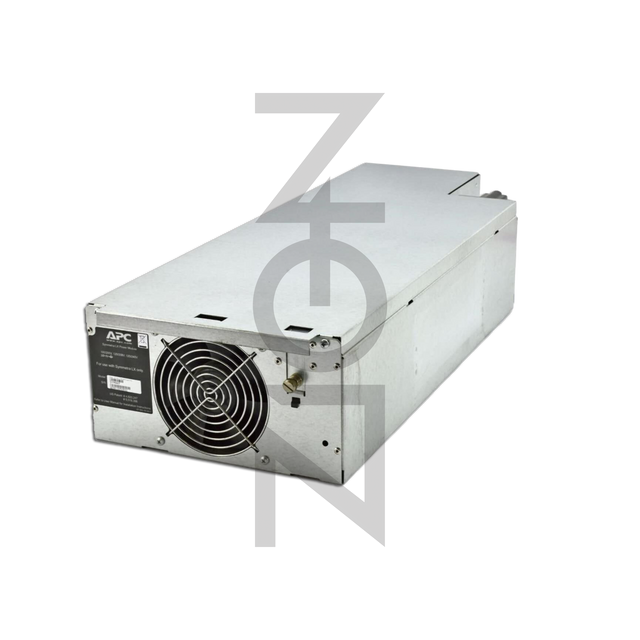

APC Symmetra LX Power Module SYPM4KP - Rebuilt - ProGrade

APC Symmetra LX Power Module SYPM4KP - Rebuilt - ProGrade

Product Overview:

The SYPM4KP is a high-density, double-conversion online power protection module designed for use with the APC Symmetra LX series. It provides scalable runtime and reliable power backup for critical equipment.

Specifications:

• Input Voltage: Supports both 200V and 208V.
• Output Voltage Options: 100V, 120V, 200V, and 208V.
• Rated Power: 4000 VA (3200 W).
• Output Connector Type: Hard Wire 4-wire (2PH+N+G).
• Mounting: Not rack-mountable (0U).
• Dimensions: Height: 5.91 inches (15 cm), Width: 9.84 inches (25 cm), Depth: 22.24 inches (56.5 cm).
• Weight: Approximately 33.07 lbs (15 kg).
• Efficiency at Full Load: 155-276 V.
• Topology: Double Conversion Online.
• Wave Type: Sine wave.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Relative Humidity: 0% to 95%.
• Acoustic Level: 62 dBA.
• Additional Information:
• The SYPM4KP is configurable for 120/208 or 120/240 output voltage.
• It comes with an installation guide.
• Empty battery slots allow for customization.
• USB compatibility is not available.
• Condition: refurbished

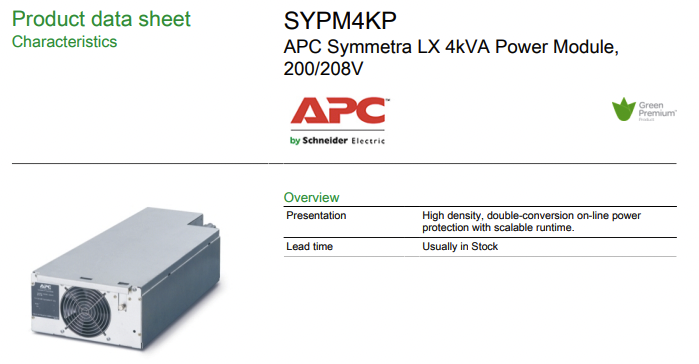

Datasheet
