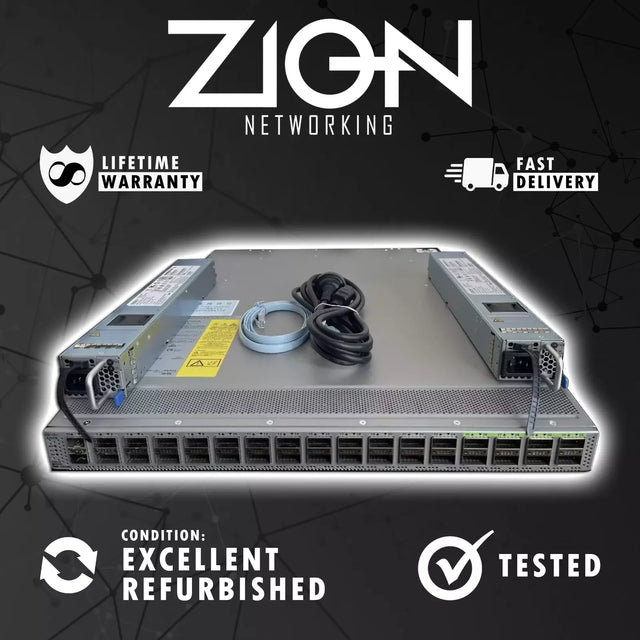

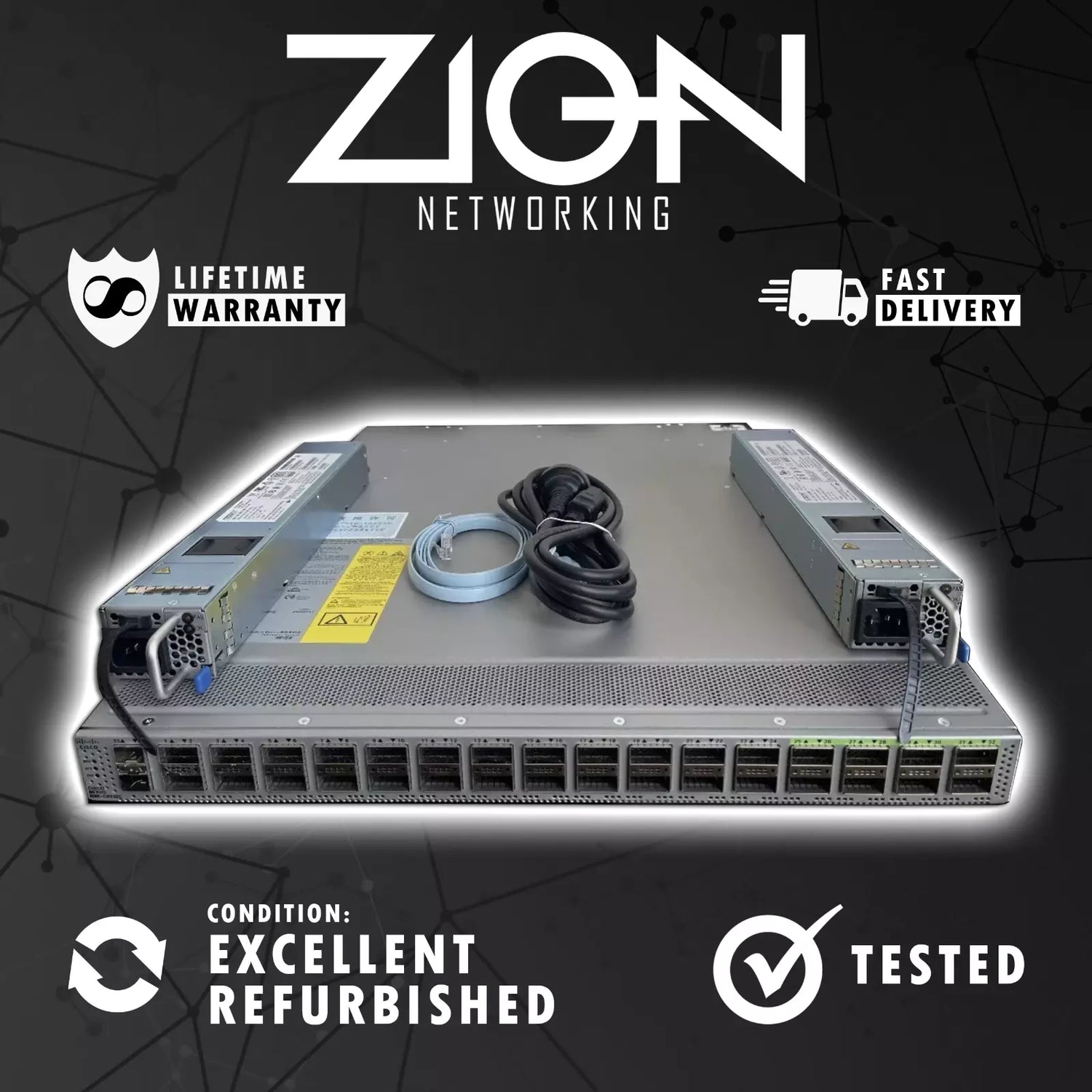

Cisco N9K-C9332C NXOS Spine switch 32 ports 40/100G QSFP28 + 2p 10G SFP

Quick spec of N9K-C9332C

• Product Code : N9K-C9332C
• Physical : ●  32-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports ●  1100 watt (W) AC, DC or HVAC/HVDC power supplies (up to 2) ●  Hot-swappable, 5 fans with redundancy ●  System memory: 16 GB ●  SSD: 256GB ●  USB: 1 port ●  RS-232 serial console ports: 1 ●  Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) ●  Broadwell-DE CPU: 4 cores
• Physical (H x W x D) : 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm)
• Weight (chassis) : 25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans

N9K-C9332C  Specification

• Physical :
  •   32-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports
  •   1100 watt (W) AC, DC or HVAC/HVDC power supplies (up to 2)
  •   Hot-swappable, 5 fans with redundancy
  •   System memory: 16 GB
  •   SSD: 256GB
  •   USB: 1 port
  •   RS-232 serial console ports: 1
  •   Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
  •   Broadwell-DE CPU: 4 cores
• Power and Cooling :
  •   Power: 1100W AC, 1100 DC or 1100W HVAC/HVDC
  •   Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W
  •   Frequency: 50 to 60 Hz (AC)
  •   Efficiency: 90% or greater (20 to 100% load)
  •   RoHS compliance: Yes
  •   Hot swappable: Yes
  •   Port-side intake or port-side exhale options
  •   Typical power: 296W (AC)
  •   Maximum power: 700W (AC)
• Environmental :
  •   Physical (H x W x D): 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm)
  •   Weight: 25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans
  •   Operating temperature: 32 to 104°F (0 to 40°C)
  •   Nonoperating (storage) temperature: -40 to 158°F (-40 to 70°C)
  •   Humidity: 5 to 85% (noncondensing)
  •   Altitude: 0 to 13,123 ft (0 to 4000m)
• Acoustics :
  •   Fan speed at 50%: 76.4 dBA
  •   Fan speed at 70%: 83.3 dBA
  •   Fan speed at 100%: 92.1 dBA
• MTBF :  363,500 hours
