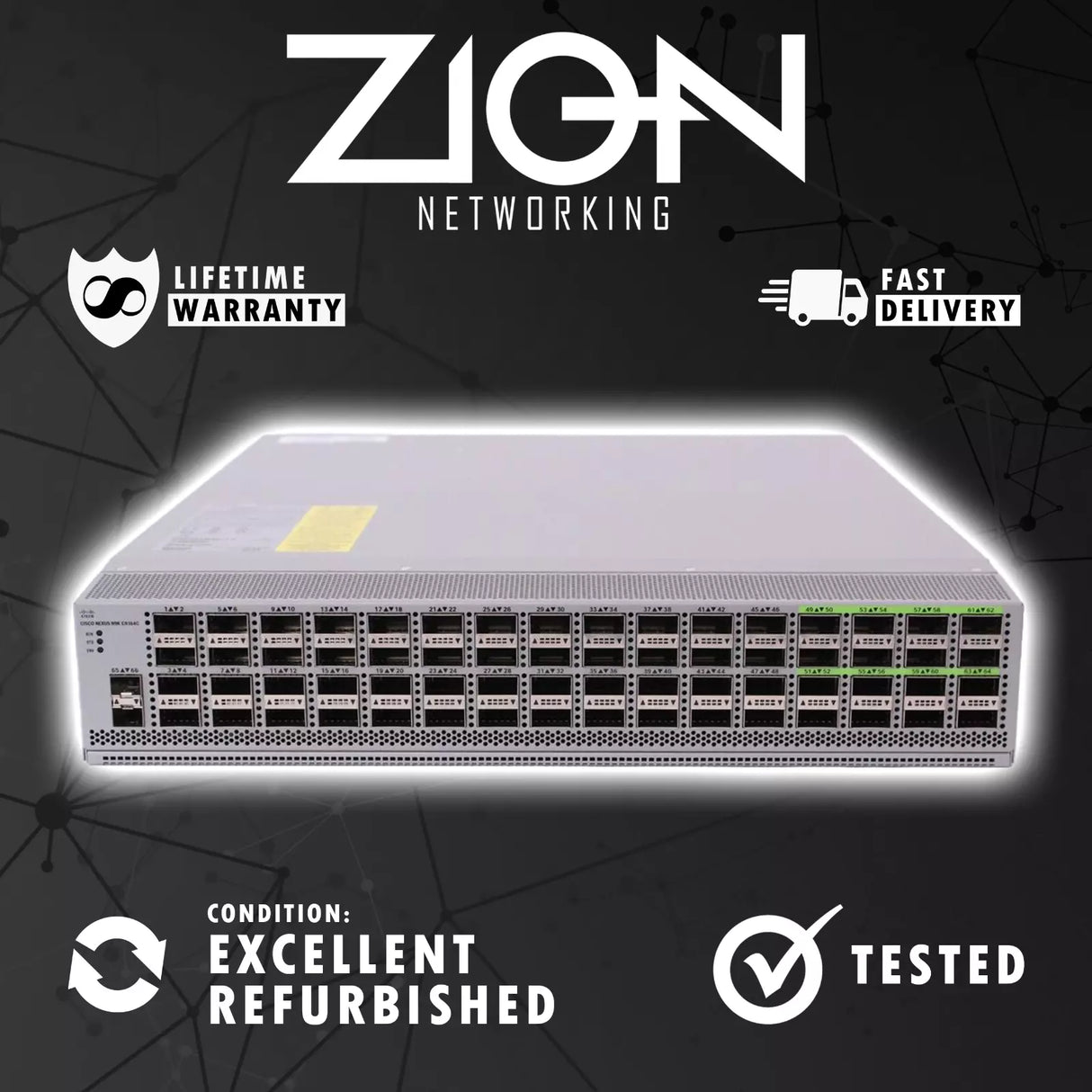

Cisco N9K-C9364C Nexus Switch 64p 40/100G w/ Dual AC PSU Lifetime Warranty

Quick spec of N9K-C9364C

Product Code : N9K-C9364C

Physical : ●  64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports ●  1200 watt (W) AC power supplies or 930W DC power supplies (up to 2) ●  Hot-swappable, dual fan trays with redundant fans ●  System memory: 32GB ●  SSD: 256GB ●  USB: 1 port ●  RS-232 serial console ports: 1 ●  Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) ●  Broadwell-DE CPU: 4 cores

Physical (H x W x D) : 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)

Weight (chassis) : 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans

Specification

•   64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports
•   1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)
•   Hot-swappable, dual fan trays with redundant fans
•   System memory: 32GB
•   SSD: 256GB
•   USB: 1 port
•   RS-232 serial console ports: 1
•   Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
•   Broadwell-DE CPU: 4 cores
• Power and Cooling :
•   Power: 1200W AC, 930W DC or 1200W HVAC/HVDC
•   Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W; PSU redundancy is not supported when used in 100-120V
•   Frequency: 50 to 60 Hz (AC)
•   Efficiency: 90% or greater (20 to 100% load)
•   RoHS compliance: Yes
•   Hot swappable: Yes
•   Port-side intake or port-side exhale options
•   Typical power: 429W (AC)
•   Maximum power: 1245W (AC)
• Environmental :
•   Physical (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
•   Weight: 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans
•   Operating temperature: 32 to 104°F (0 to 40°C)
•   Nonoperating (storage) temperature: -40 to 158°F (-40 to 70°C)
•   Humidity: 5 to 85% (noncondensing)
•   Altitude: 0 to 13,123 ft (0 to 4000m)
• Acoustics :
•   Fan speed at 40%: 76.7 dBA
•   Fan speed at 70%: 88.7 dBA
•   Fan speed at 100%: 97.4 dBA
• MTBF :  257,860 hours
