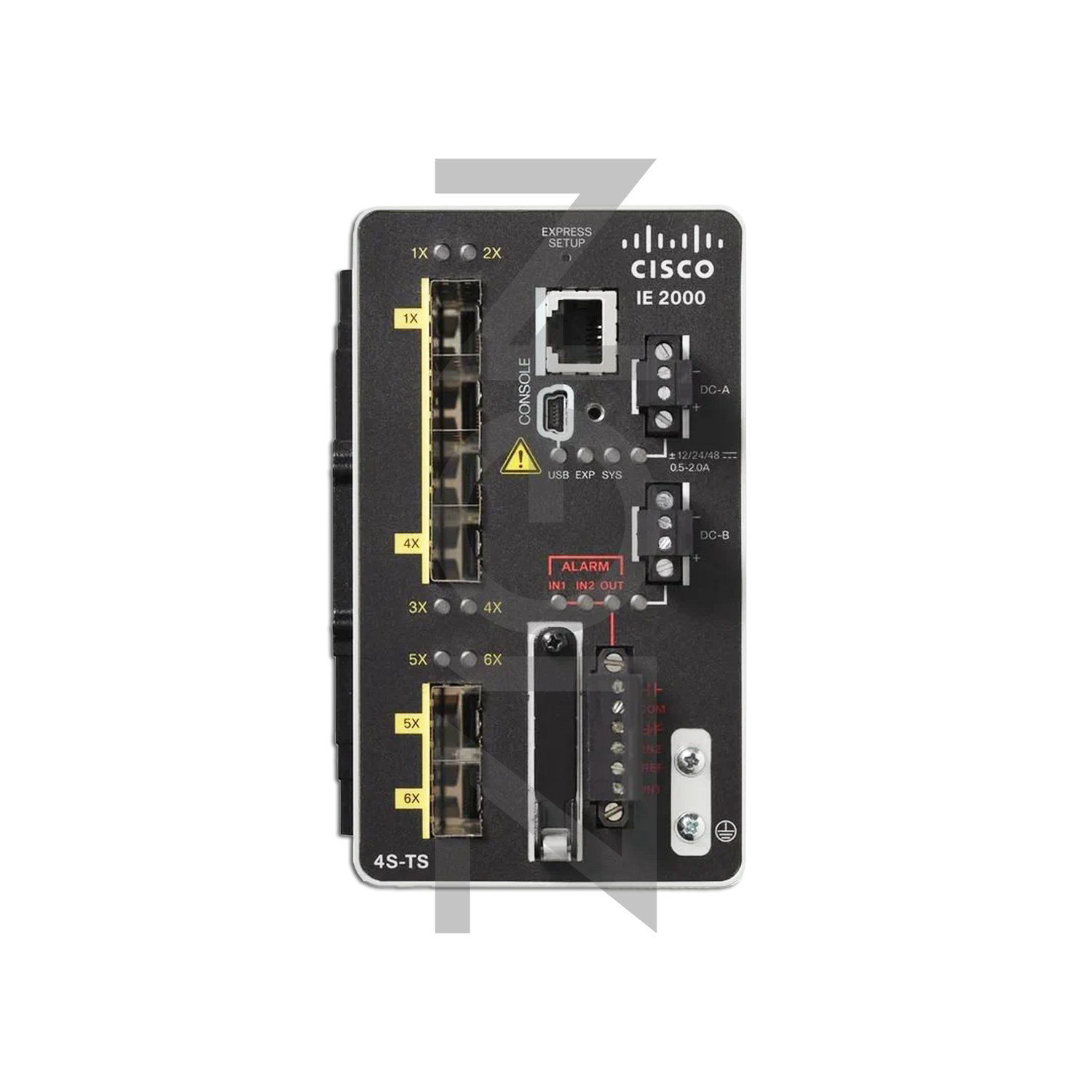

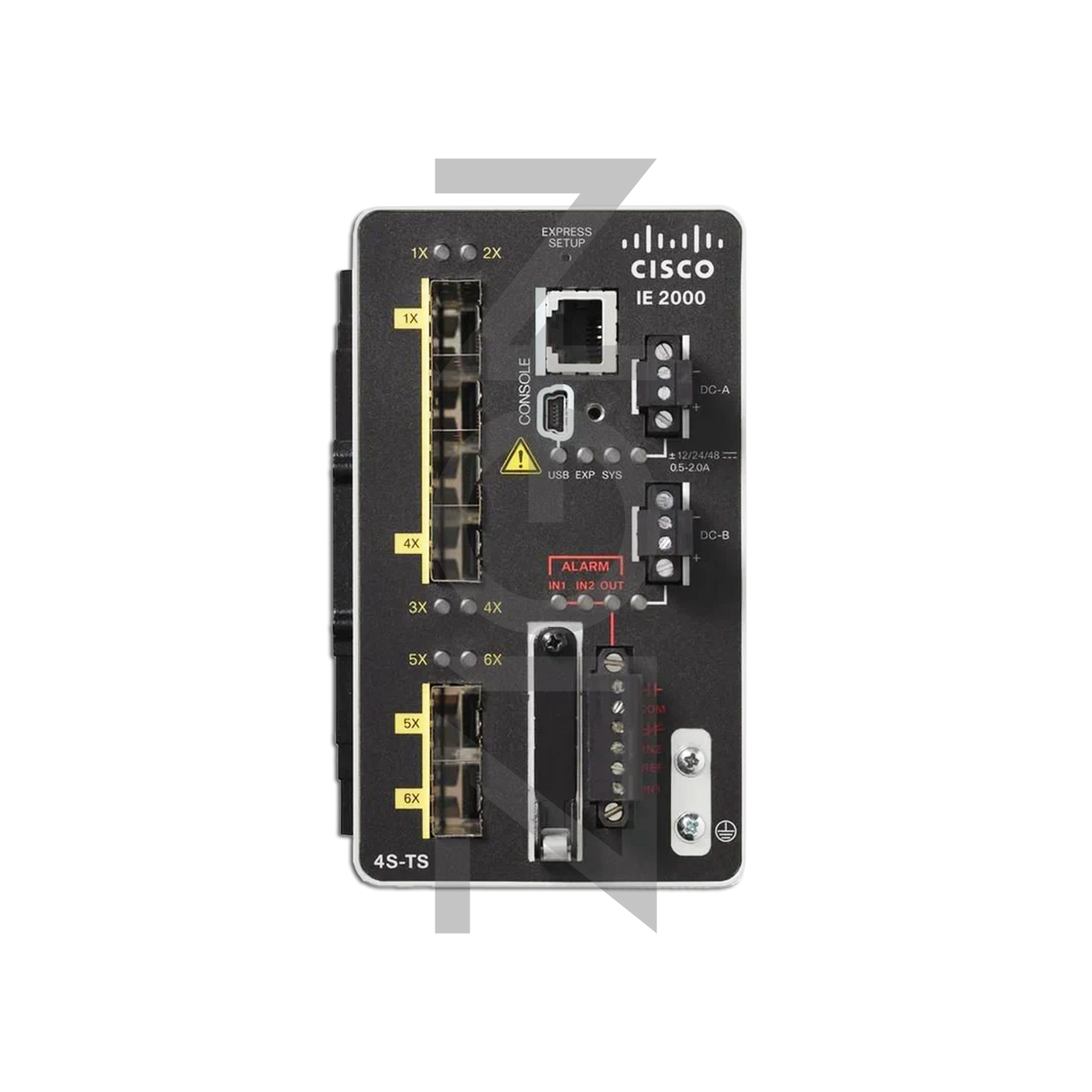

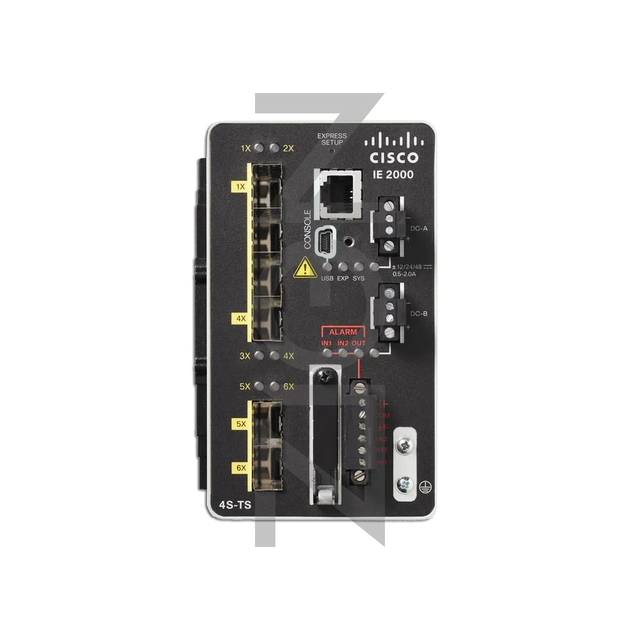

NEW Cisco IE-2000-4S-TS-G-B - IE2000 with 4 FE SFP ports and 2 GE SFP ports (Lan Base)

Name: NEW Cisco IE-2000-4S-TS-G-B - IE2000 with 4 FE SFP ports and 2 GE SFP ports (Lan Base)
Brand: Cisco
Price: 1999.00 USD
Availability: InStock

$1,999.00

Shipping calculated at checkout.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Free ground fedex or UPS shipping

NEW Cisco IE-2000-4S-TS-G-B - IE2000 with 4 FE SFP ports and 2 GE SFP ports (Lan Base)

The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:

● Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable downlinks on selected models); fixed configurations with a compact form factor.

● Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink.

● Dual-input DC power supply, alarm relays, DIN rail mount.

● Industrial Power over Ethernet (PoE) solution.

● Conformal coating SKUs available (IE-2000-16TC-G-X and IE-2000-16PTC-G- NX).

● Swappable SD flash card and mini-USB connector.

● Industrial environmental compliance and certifications.

● Industrial partner applications: Ethernet/IP and PROFINET.

Condition : NEW

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Total Ports	6
SFP Ports	4 FE, 2 GE
Manufacturing license	LAN Base
Hardware	● 256 MB DRAM with ECC memory ● IEEE 1588v2 FPGA ● 64 MB on-board flash memory ● 1GB removable SD flash memory card (optional) ● Mini-USB connector
Alarm	● Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
Connectors and cabling	● 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
IE2000 Software Features
LAN Lite license	Baseline features
Layer 2 switching	IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)
Security	SCP, SSH, SNMPv3, TACACS , RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Management	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Industrial Ethernet	EtherNet/IP, Profinet v2
LAN Base license	Additional features
Layer 2 switching	VTPv3, EtherChannel, Voice VLAN, Flexlink
Security	IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
Quality of service	IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Management	Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
Industrial Ethernet	IEEE 1588 PTPv2
IPv4 routing	IPv4 static routing
IPv6 routing	IPv6 host support, HTTP over IPv6, SNMP over IPv6
Enhanced LAN Base	Additional features
Industrial management	Layer 2 switching with 1:1 static Network Address Translation (NAT)
IP Lite license	Additional features
IPv4 routing	RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode.
IPv6 Routing	IPv6 Static routing, OSPFv3
Security	FIPS 140-2
Embedded Event Manager	EEM feature enabled with IP Lite license
DNA Essentials	Additional features
Cisco DNA Center	Discovery, topology, inventory, software image management
Visibility	DNA assurance, Device 360
Day-zero network bring-up automation	Cisco Network Plug-and-Play application

Total Ports	6
SFP Ports	4 FE, 2 GE
Manufacturing license	LAN Base
Hardware	● 256 MB DRAM with ECC memory ● IEEE 1588v2 FPGA ● 64 MB on-board flash memory ● 1GB removable SD flash memory card (optional) ● Mini-USB connector
Alarm	● Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
Connectors and cabling	● 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
IE2000 Software Features
LAN Lite license	Baseline features
Layer 2 switching	IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)
Security	SCP, SSH, SNMPv3, TACACS , RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Management	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Industrial Ethernet	EtherNet/IP, Profinet v2
LAN Base license	Additional features
Layer 2 switching	VTPv3, EtherChannel, Voice VLAN, Flexlink
Security	IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
Quality of service	IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Management	Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
Industrial Ethernet	IEEE 1588 PTPv2
IPv4 routing	IPv4 static routing
IPv6 routing	IPv6 host support, HTTP over IPv6, SNMP over IPv6
Enhanced LAN Base	Additional features
Industrial management	Layer 2 switching with 1:1 static Network Address Translation (NAT)
IP Lite license	Additional features
IPv4 routing	RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode.
IPv6 Routing	IPv6 Static routing, OSPFv3
Security	FIPS 140-2
Embedded Event Manager	EEM feature enabled with IP Lite license
DNA Essentials	Additional features
Cisco DNA Center	Discovery, topology, inventory, software image management
Visibility	DNA assurance, Device 360
Day-zero network bring-up automation	Cisco Network Plug-and-Play application
