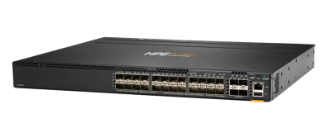

New JL658A HPE ARUBA 6300M 24-PORT SFP+ AND 4-PORT SFP56 SWITCH (HPE renewed)

Overview

The HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch (Model: JL658A) is a high-performance, modular switch designed for enterprise network access, aggregation, and data center top-of-rack deployments.This switch is ideal for organizations seeking a flexible and scalable solution to meet the demands of modern networking environments.

Specifications

• Ports:
• 24 x 1G/10G SFP+ ports
• 4 x 1G/10G/25G/50G SFP56 ports
• Performance:
• Switching Capacity: 880 Gbps
• Throughput: 654 Mpps
• Latency:
• 1 Gbps: 1.99 µs
• 10 Gbps: 1.49 µs
• 25 Gbps: 2.85 µs
• 50 Gbps: 2.82 µs
• Hardware:
• Processor: Quad-Core ARM Cortex A72 @ 1.8 GHz
• Memory: 8 GB DDR4
• Storage: 32 GB eMMC
• Packet Buffer: 8 MB shared
• Stacking:
• Supports stacking of up to 10 switches using HPE Aruba Networking Virtual Switching Framework (VSF)
• Stacking Bandwidth: Up to 200 Gbps
• Power and Cooling:
• Power Supply: Supports up to 2 field-replaceable, hot-swappable power supplies (minimum 1 required; ordered separately)
• Power Consumption:
• Idle: 51W
• 100% Traffic Rate: 85W
• Cooling: Includes two field-replaceable, hot-swappable fan trays
• Dimensions and Weight:
• Height: 1.73 inches (4.4 cm)
• Width: 17.4 inches (44.2 cm)
• Depth: 15.2 inches (38.5 cm)
• Weight: 12.78 lbs (5.8 kg)
• Management and Features:
• Managed via HPE Aruba Networking AirWave, HPE Aruba Networking Central, HPE Aruba Networking NetEdit, and command-line interface
• Supports advanced Layer 3 features, including BGP, EVPN, VXLAN, VRF, and OSPF
• Robust security and Quality of Service (QoS) capabilities
